The 2019 Silverado 1500 achieves a substantial towing capacity of up to 12,200 pounds when configured with the 6.2L V8 engine and the Max Trailering Package. However, selecting the wrong cab style or axle ratio often leads to a lower limit than expected, potentially compromising both safety and mechanical longevity.
We have analyzed the technical specifications and hardware requirements to help you determine the exact 2019 silverado 1500 towing capacity for your specific truck configuration.
- 2019 Silverado Towing Capacity And Engine Performance
- Mechanical Components Of The Max Trailering Package
- Vehicle Configuration And Its Impact On Tow Ratings
- Reliable Ways To Verify Specific Trailering Limits
2019 Silverado Towing Capacity And Engine Performance

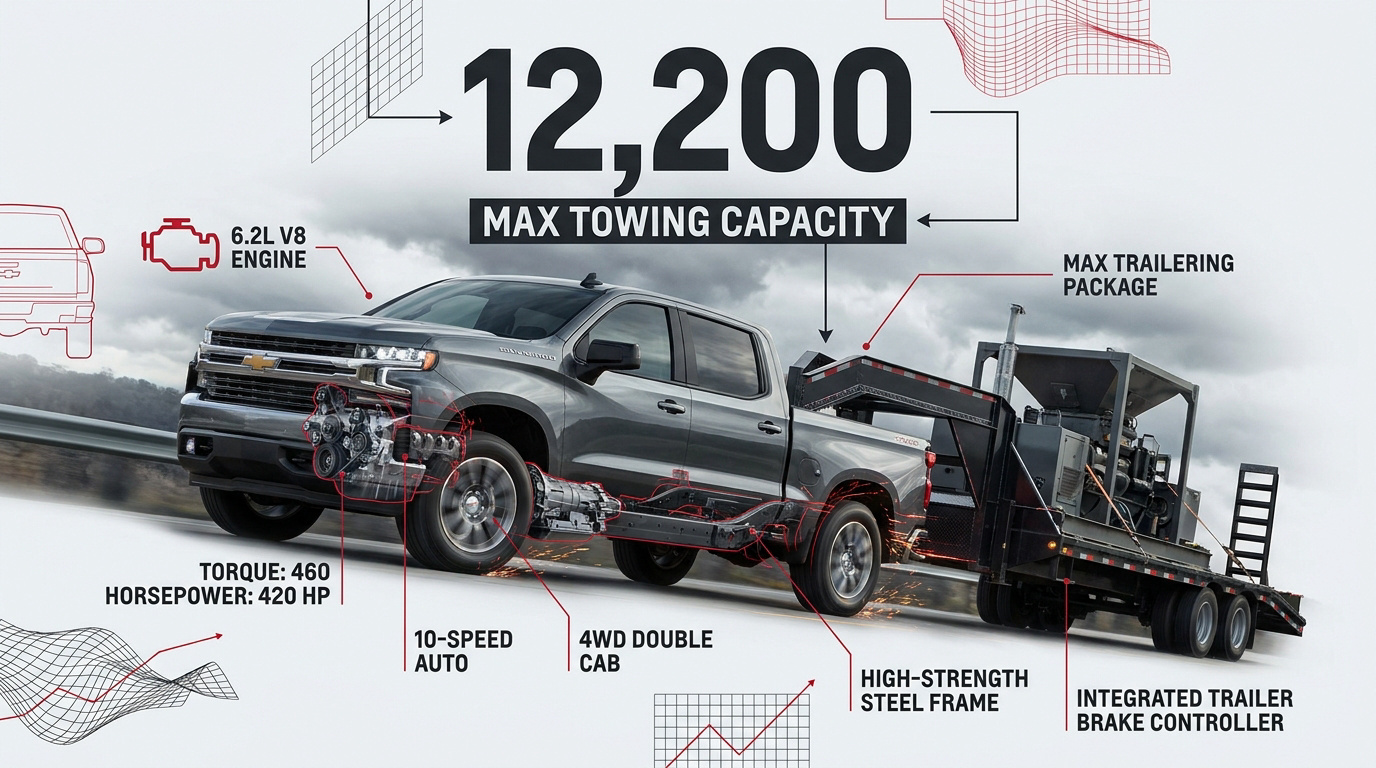

The 2019 Silverado 1500 peaks at 12,200 pounds of towing capacity when equipped with the 6.2L V8 and Max Trailering Package. Other configurations vary significantly, ranging from 7,000 to 11,000 pounds based on engine choice. This peak performance is directly tied to the 6.2L V8 engine details.
6.2L V8 And The 12,200-lb Performance Peak
The 6.2L V8 stands as the premium power plant for this truck, delivering 420 horsepower and 460 lb-ft of torque. These figures are ideal for heavy-duty hauling tasks. The 12,200-pound limit specifically requires the 4WD Double Cab configuration.
A 10-speed automatic transmission manages gear hunting effectively, keeping the engine in its power band for smooth delivery under load. Specific hardware is mandatory for this peak rating, including higher axle ratios and cooling upgrades found in the Max Trailering Package.
5.3L V8 And 2.7L Turbo Capabilities
The 5.3L V8 offers traditional reliability, while the 2.7L Turbo provides surprising torque for lighter trailers and daily driving needs. We should also note the 3.0L Duramax diesel option, which excels in fuel efficiency while towing heavy loads.
Towing differences between these engines. The 5.3L usually hovers around 9,000 to 11,000 pounds, whereas the 2.7L Turbo targets the 7,000-pound segment effectively. Choosing the right configuration is essential for safety and performance.
Mechanical Components Of The Max Trailering Package
While engine power provides the pull, the specialized hardware in the Max Trailering Package ensures the truck handles the strain safely.
Cooling Systems And Suspension Tuning
The system incorporates a larger radiator and an external transmission oil cooler. These components prevent overheating during long climbs. Heat is the primary enemy of towing longevity.
We observe heavy-duty rear suspension tuning here. This includes revised shock calibration and tougher leaf springs. It reduces rear-end sag under heavy tongue weight. Stability improves significantly.
Increased cooling capacity is vital. It allows for sustained heavy loads in hot summer climates.
Axle Ratios And Structural Upgrades
The 3.42 rear axle ratio is a standard feature. This shorter gearing provides better mechanical advantage when starting from a full stop.
Engineers utilized a heavy-duty 9.75-inch rear axle housing. This structural upgrade handles higher torque loads. It is a key part of the Max Trailering Package. Standard models use a smaller housing.
Gear ratios directly impact pulling power. Higher numbers mean more torque at the wheels. This helps the truck maintain speed on steep highway grades without constant downshifting.
Vehicle Configuration And Its Impact On Tow Ratings
Beyond the mechanical package, the physical shape of your Silverado determines exactly how much weight you can legally and safely pull.
Cab Styles And Bed Length Stability
Crew Cabs offer superior interior space but increase the vehicle’s curb weight. This additional mass often reduces the total towing capacity. Double Cabs typically provide higher ratings by staying lighter.
Longer beds extend the truck’s wheelbase. This longer footprint generally provides a more stable platform for towing trailers. It helps minimize the leverage a trailer can exert on the truck.
- Crew Cab vs Double Cab stability
- Short bed vs Standard bed weight differences
- Wheelbase impact on sway control
Understanding GVWR And GCWR Limits
GVWR is the maximum weight of the truck alone. GCWR includes the truck, the trailer, and all cargo inside. These ratings are set by the manufacturer to ensure mechanical safety.
Subtract the truck’s actual weight from the GCWR. This calculation gives you the real-world towing limit. Many owners forget to include passengers in this equation. Cargo in the bed also counts toward the total.
Heavier luxury trims have lower payload capacities than base work trucks. Added features increase the curb weight significantly.
Reliable Ways To Verify Specific Trailering Limits
Because every truck is unique, you must look past the general brochures to find your vehicle’s specific limits.
Decoding The Door Jamb And RPO Labels
Locate the VIN-specific label on the driver’s side door pillar. This sticker represents the ultimate source of truth. It displays the exact GVWR and GAWR for your specific build.
Check the glovebox for the RPO code list. Look specifically for code NHT to confirm the Max Trailering Package. These three-digit codes reveal the hidden mechanical specifications of the truck.
Contact a local dealer with your VIN if data is missing. They can easily print a factory build sheet. This document shows every installed component affecting the 2019 silverado 1500 towing capacity.
Payload Limits And Tongue Weight Management
Payload limits often restrict actual towing more than the maximum rating. Tongue weight typically consumes 10 to 15 percent of the trailer weight. This load sits directly on the rear axle.
| Engine | Max Towing (lbs) | Max Payload (lbs) | Notes |
|---|---|---|---|
| 2.7L Turbo | 7,000 | 2,250 | Efficient for light loads |
| 5.3L V8 | 11,600 | 2,190 | Versatile all-rounder |
| 6.2L V8 (NHT) | 12,200 | 2,100 | Requires Max Trailering Pack |
| 3.0L Diesel | 9,300 | 1,870 | High torque for cruising |
Operating at 100% capacity leaves no room for error. Staying at 80% of the limit ensures a much more comfortable and stable driving experience.
Mastering the 2019 Silverado 1500 towing capacity requires selecting the 6.2L V8 and Max Trailering Package to reach the 12,200-pound peak. Always verify your specific VIN label for precise limits before hauling. Secure your truck’s longevity and safety by respecting these mechanical boundaries today.
